Profile — Integrations ▸ Extensions

The Profile ▸ Integrations ▸ Extensions page is the user-facing pairing surface for the Athenty Snap browser extension. Snap detects identity-verification requests on any web page and lets users submit them without leaving the tab — pairing this page authorizes Snap to call the Athenty API as the signed-in user.

Anatomy of the page

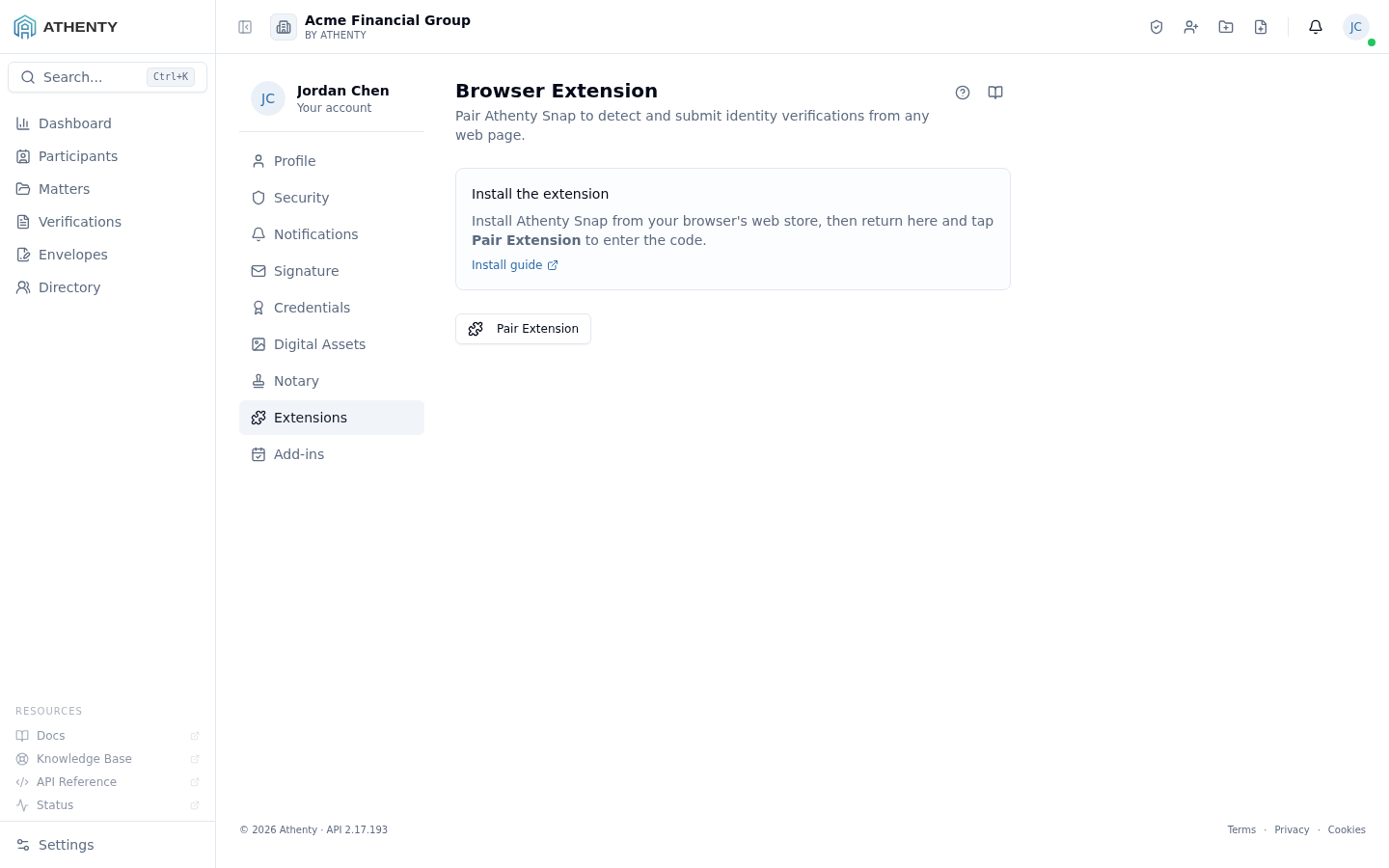

1. Page header

Standard PageHeader with the title Browser Extension and a one-line description. Sits at the top of the right-hand content panel under the Profile left-nav.

2. Install banner

A static informational banner explaining the install step (browser web store) with an inline link to the Snap getting-started doc on athenty.com. The banner is always visible — the user might not have installed Snap yet.

3. Pair Extension button + active code

A single button that emits a 6-digit pairing code on click. While the code is live, a card appears above the button showing:

• The 6 digits in fixed-width tiles
• A countdown bar for the 5-minute expiry
• An expired state when the timer reaches zero
• A Dismiss action

4. Paired list

Below the button, a list of every browser currently paired with the user’s account:

• Pairing name (auto-derived from the user-agent)
• Who paired it (the user themselves, in nearly every case)
• Last-used timestamp
• A small Expired pill if the pairing has aged out
• A revoke icon button (top-right of each row)

Revoking opens a confirm dialog — pairings are not soft-deleted, so the revoke is destructive.

Pairing flow

The end-to-end flow:

1. User installs Snap from the browser web store
2. User opens Snap and clicks Pair
3. Snap displays a 6-digit input
4. User opens this page and clicks Pair Extension
5. Server emits a fresh 6-digit code with a 5-minute TTL
6. User types the code into Snap within the TTL
7. Snap calls the validation API; on success, a new token is minted and the pairing appears under Paired here

The code is single-use and bound to the user’s session — a teammate cannot generate a code on your behalf.

Code semantics

• Length: 6 digits
• TTL: 300 seconds (5 minutes)
• Single-use: consumed on first valid submission
• Auto-expired: replaced if the user clicks Pair Extension again while one is live

Pairing lifecycle

Each pairing has its own row in the paired list with this lifecycle:

created ─▶ active ─▶ revoked
        ↘ expired (after inactivity window)

The inactivity window defaults to 90 days. Activity is any API call Snap makes on the user’s behalf — not just opening Snap.

Permissions and scope

Role	Pair	Revoke own	Revoke others
Owner / Admin	✓	✓	✓ (via Settings ▸ Compliance)
Member	✓	✓	✗
Viewer	✗	✗	✗

Pairings are user-scoped. Owners and admins can see and revoke other users’ pairings only via the admin surface; this Profile page shows just the user’s own.

Audit trail

Every pairing emits audit events:

• extension.code_generated
• extension.paired
• extension.revoked
• extension.expired

These events surface in Settings ▸ Audit Log for admins and in the user’s own Profile ▸ Security ▸ Activity tab.

Troubleshooting

Symptom	Most likely cause	Fix
Snap rejects the code	Code already expired	Click Pair Extension again for a fresh code
Pairing missing from list	Network race after Snap submitted	Refresh the page
Code never typed	User dismissed the card	Click Pair Extension again
Snap calls fail post-pair	User signed out of Athenty	Sign back in; pairings persist across logouts
Inactivity-expired pairing	No Snap activity in 90 days	Re-pair to refresh the token
