Settings — Webhooks

The Settings ▸ Webhooks page is the admin surface for registering real-time HTTP callbacks. Each webhook is an HTTPS URL plus a list of typed events; when a matching event fires in your tenant, the platform POSTs a signed JSON payload to your endpoint.

This is the primary integration mechanism for hooking Athenty into your own systems — Slack notifications, internal CRMs, regulator reporting pipelines, ETL jobs.

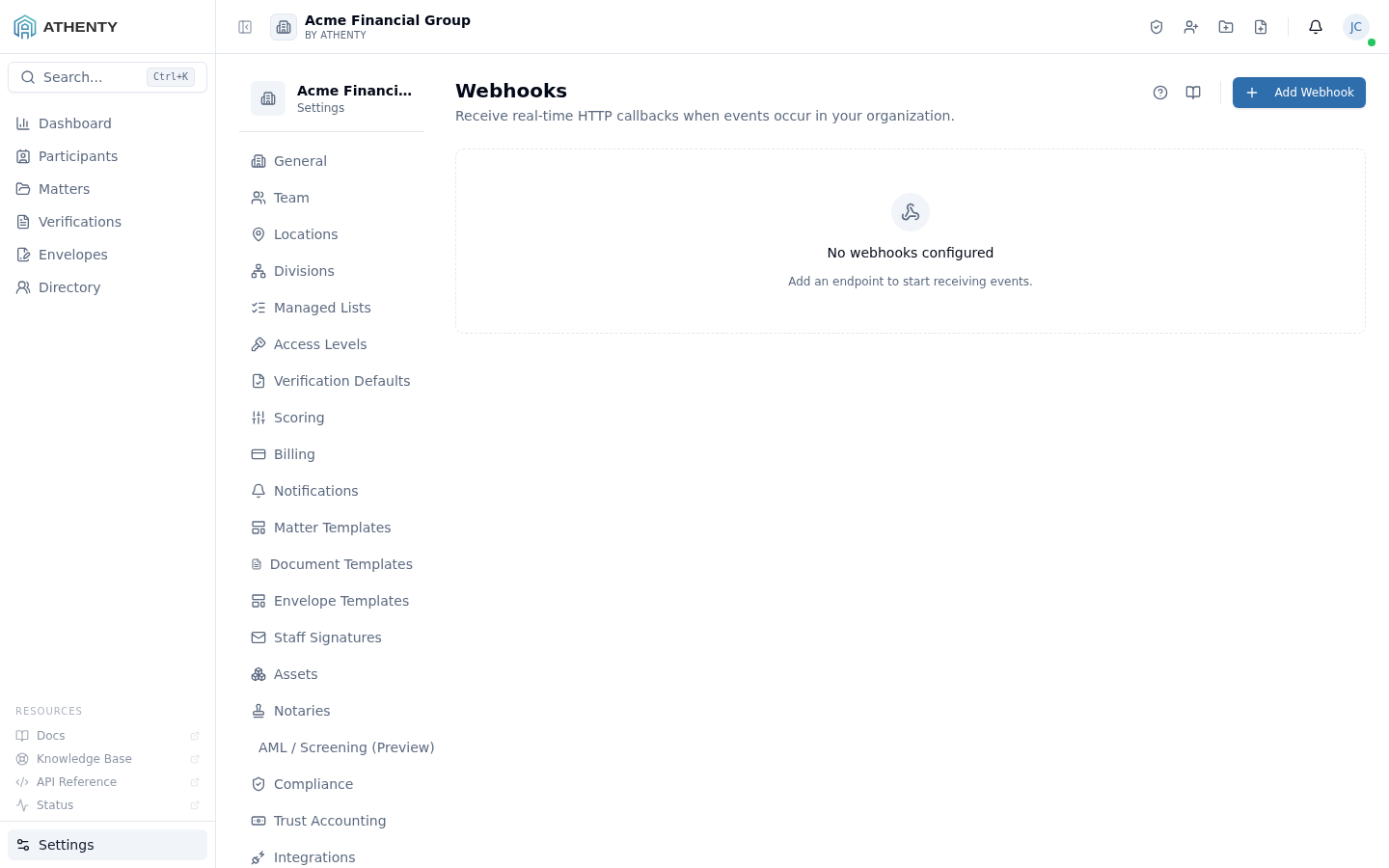

Anatomy of the page

1. Page header

Standard PageHeader with the title Webhooks and a one-line description. The Add Webhook button sits to the right.

2. Webhooks list

Each row carries:

• The endpoint URL (with a copy-button)
• A badge group of subscribed events
• Active toggle
• Last delivery timestamp + status pill
• Row actions (Test, Edit, Rotate secret, Delete)

Clicking the chevron expands the row to show the per-webhook delivery history with status codes and response bodies.

3. Add / edit slide-out

The slide-out captures URL, description, and an event multi-select. Save creates the webhook server-side, generates a signing secret (shown once), and dispatches a one-time test ping.

Event taxonomy

The same typed event names used by Settings ▸ Audit Log are available as subscription keys here. Common subscriptions:

Event	Triggered by
request.created	New verification opened
request.approved / request.rejected	Reviewer decision
request.expired	Auto-expiry
envelope.completed	Every recipient signed
envelope.declined	A signer refused
matter.created / matter.updated	Matter lifecycle
client.created	New client added
user.invited / user.deactivated	Team change

The full list lives in packages/api/src/webhooks/events.ts.

Payload format

Every payload is a JSON document with this shape:

{
  "id": "01jdc233-4dae-7776-...",
  "type": "request.approved",
  "created_at": "2026-05-07T20:15:00Z",
  "tenant_id": "01jdc234-...",
  "data": { /* event-specific payload */ },
  "metadata": {
    "test": false,
    "delivery_attempt": 1
  }
}

metadata.test is true for synthetic test deliveries; false otherwise. delivery_attempt is 1-indexed and increments on each retry.

Signing

Every POST carries an HMAC-SHA-256 signature in X-Athenty-Signature, computed over the raw request body using your registered secret:

import crypto from 'crypto'
const sig = req.headers['x-athenty-signature']
const expected = crypto
  .createHmac('sha256', SECRET)
  .update(req.rawBody)
  .digest('hex')
if (sig !== expected) throw new Error('invalid signature')

Always verify against the raw body; many frameworks parse JSON before your handler sees it, which mutates whitespace and breaks the signature.

Delivery + retry

• Initial POST: 5-second timeout
• Failure retries with exponential backoff: 1m, 5m, 15m, 1h, 6h, 24h
• 6 attempts total; after that the webhook stays active but flags as failed on the row
• All retries are visible in the per-webhook delivery history

A delivery is considered successful when the endpoint returns any 2xx status code. 3xx, 4xx, and 5xx all count as failure.

Test delivery

The Test action POSTs a synthetic payload with metadata.test = true. The synthetic event has the schema of a real event but doesn’t reflect any actual record state — useful for verifying your handler in production without polluting downstream systems.

Signing secret rotation

Click Rotate signing secret on the row’s More menu. The platform:

1. Generates a new secret (shown once)
2. Sends both old and new signatures on the next 24 hours of deliveries (graceful overlap)
3. After 24 hours, only the new secret is used

This lets you update your verifier without dropping events.

Permissions and scope

Role	View	Manage
Owner / Admin	✓	✓
Member	✗	✗
Viewer	✗	✗

Webhooks are tenant-scoped — your endpoint only receives events from your own tenant.

Audit logging

Action	Event
Create	webhook.created
Edit	webhook.updated
Rotate secret	webhook.secret_rotated
Delete	webhook.deleted
Disable / enable	webhook.toggled

All events surface in Settings ▸ Audit Log.

Troubleshooting

Symptom	Most likely cause	Fix
Test delivery fails	Endpoint not reachable	Verify DNS + TLS; check egress IP allowlist
Signature mismatch	Verifying parsed JSON, not raw body	Use the raw body for HMAC
Missing some events	Not subscribed	Edit and add the event
Failed deliveries pile up	Endpoint 5xx persistently	Fix endpoint; pause the webhook to stop retries
Lost signing secret	One-time-shown only	Rotate to get a new secret + update verifier
